Product Overview
MPI Machines (Magnetic Particle Inspection Machines)
MAYURESH ENGINEERS designs and manufactures a comprehensive range of MPI Machines for detecting surface and near-surface cracks in ferromagnetic materials like steel, iron, and nickel alloys. These machines work by magnetizing the component and applying magnetic particles that gather around any discontinuity, forming a visible indication of cracks or defects.
What is MPI Machine/Crack Detector Equipment?
Magnetic Particle Inspection (MPI) Machine, also known as a Crack Detector Machine, is a vital part of Non-Destructive Testing (NDT) technology used for detecting surface and near-surface defects in ferromagnetic materials such as iron, steel, and nickel alloys.
These machines help ensure that critical industrial components — like shafts, gears, crankshafts, axles, and weld joints — are free from cracks, seams, laps, or other discontinuities that may cause failure during operation. MPI Machines are widely used in automotive, aerospace, railways, heavy engineering, foundries, and fabrication industries for quality control and safety assurance.
How Does an MPI Machine Work?
The working principle of Magnetic Particle Inspection (MPI) Machine is based on the magnetization of the test specimen and the observation of magnetic flux leakage. When a ferromagnetic component is magnetized, the magnetic field flows uniformly through it. If there is any crack or discontinuity, the field leaks out at that point.
When magnetic particles — either dry powder or wet suspension — are applied to the surface, they are attracted to the leakage area, forming a visible indication of the defect. The operator can then observe these indications under white light or UV (black) light, depending on the type of magnetic particles used.
This process helps detect:
- Surface cracks
- Subsurface flaws (near surface)
- Laps, seams, and inclusions
- Fatigue cracks and weld defects
All of this is achieved without damaging or altering the part being tested, making MPI one of the most efficient and economical NDT methods available.
Types of MPI Machines (Crack Detectors)
Depending on the inspection requirement and work environment, different types of Magnetic Particle Inspection Equipment are available:

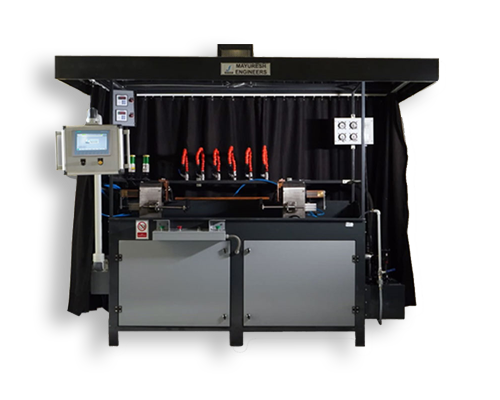

- Bench Type MPI Machines: These are robust, stationary machines ideal for high-volume production testing. They are equipped with head and tail stocks, current control units, and particle application systems. Perfect for testing medium to small-sized components such as shafts, bolts, and rings.
- Portable MPI Units: Designed for on-site inspection, portable MPI machines are lightweight and easy to operate. They are ideal for large or immovable structures such as pipelines, welded joints, pressure vessels, and heavy castings.
- Wet Horizontal MPI Machines: These machines use wet suspension magnetic particles for higher sensitivity and better coverage, suitable for detailed laboratory and precision testing.
- Customized MPI Systems: Advanced systems can be customized based on component geometry, magnetizing current, and testing standards. Automated or semi-automatic crack detection machines improve productivity and consistency
Features
Key Features of MPI Machines
MPI Machines from MAYURESH ENGINEERS are designed for accuracy, durability, and ease of operation, making them suitable for both production and laboratory environments.
High Crack Detection Sensitivity
Detects minute surface and near-surface defects with high accuracy.
Non-Destructive & Fast
Quick inspection process without damaging or altering the component.
User-Friendly Digital Controls
Simple operation with digital displays and built-in safety interlocks.
Standards Compliance
Complies with IS 3703, ASTM E1444, and ASME standards.
AC & DC Magnetization
Available with AC, DC, and HWDC magnetizing current options.
Applications
Applications of MPI Machines
MPI Machines are used extensively in various industrial sectors, including:
Automotive Industry
Inspection of crankshafts, connecting rods, and gears.
Aerospace
Detection of fatigue cracks in structural parts and landing gear components.
Railways
Testing of axles, couplers, and bogie parts.
Oil & Gas
Inspection of welded joints and pressure
vessels.
Foundries & Forgings
Testing cast and machined components for defects.
Advantages
Advantages of MPI Machines
MPI Machines are widely used where early detection of cracks and defects is critical.
Quick and reliable defect detection
Low operational and maintenance cost
High repeatability and accuracy
Compatible with large-scale testing
Enhances component safety and performance
Why Choose Us
Why Choose a Reliable MPI Machine Manufacturer
Selecting the right MPI Machine or Crack Detector Manufacturer is crucial for obtaining consistent and accurate results. Trusted companies like MAYURESH ENGINEERS specialize in the design and manufacture of high-quality Magnetic Particle Inspection Machines that meet international NDT standards.
With a strong focus on innovation, precision, and durability, MAYURESH ENGINEERS provides bench type, portable, and wet horizontal MPI systems built for rigorous industrial applications. Their machines ensure long service life, operator safety, and reliable defect detection.
With years of expertise in NDT technology, MAYURESH ENGINEERS delivers equipment that ensures precision, safety, and efficiency. Their machines are widely used by quality control departments, testing laboratories, and industrial units committed to maintaining global standards of excellence.
As a leading manufacturer and supplier of Magnetic Particle Inspection (MPI) Machines and Crack Detector Machines in India, MAYURESH ENGINEERS continues to empower industries with cutting-edge Non-Destructive Testing (NDT) Equipment. The company's dedication to performance, durability, and accuracy makes it a trusted partner in quality assurance and industrial safety.
Industry Expertise
Serving Critical Industries
Crack Detector Machines are widely used across industries where component safety and defect prevention are essential.
Automotive
Inspection of safety-critical drivetrain and engine components.
Railways
Testing of wheels, axles, couplers, and railway components.
Foundries & Forgings
Inspection of castings and forged parts before dispatch.
For superior Magnetic Particle Inspection Equipment, choose a trusted manufacturer like MAYURESH ENGINEERS — your partner in precision, quality, and non-destructive testing excellenc
Our Clientele
Trusted by Leading Industries
We proudly serve renowned organizations across Automotive, Railways, Aerospace, Energy, and Heavy Engineering sectors.
CALL TO ACTION
Looking for a Reliable MPI Machine?
Get expert guidance to select the right MPI Machine for your application.
